Heat press not heating up

[webtrekker]

A multimeter would go a long way to answering some of your questions. Most 'old fashioned engineers' swear by them (and AT them!).

[decca591]

One other thought I had was that many presses have an integrated timer and controller, which could possibly account for the extra connections ?

Decca.

[decca591]

I do have a meter, naturally its down my workshop - will try to pop across tomorrow or bring it home Monday, along with my trusty 4lb lump hammer

Decca

[willd]

The photographs unfortunately don't shed any more light on the situation.

The controllers will likely either be XMTE-2001 or XMTE-2002 - the difference is either a thermocouple or a resistance type temperature input.

As long as both controllers have the same part number you'll be ok.

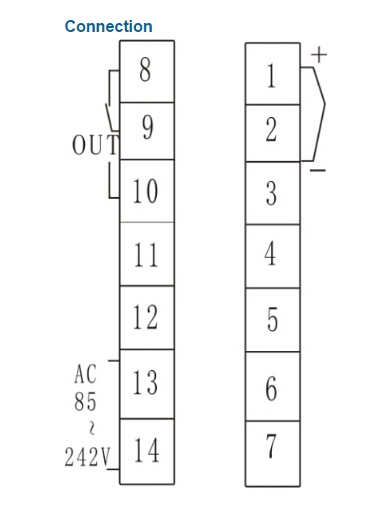

The pinouts for your new controller are attached:-

vB_ID:4484


So input on terminals 13 & 14
Output on terminals 9 & 10
Temp pickup on terminals 1 & 2

If a resistance type pickup - which I'd guess is most likely, then connections on 1 & 2 are not polarity conscious, if a thermocouple they will be.

The fact that you have no pilot is indicative of a controller failure, though that may have been caused by the element failing!

Probably worth doing a continuity & insulation & short circuit test on the element before risking the new controller...




Edited to add:-

Having looked again at the new photographs with my eyes switched on, I see that it's a XMTE-2301 - which is similar to the XMTE-2001 but with a time proportional output - maybe that means that it's a "learning" controller...

As it also says it's for a type "k" thermocouple temperature pickup.

There is little to be learned from what's left of the label on the old controller, but you can test the temperature probe by measuring its voltage output - about 1mV at 25°C, 4mV at 100°C and 8mV at 200°C - these are nominal figures as for them to be precise the "cold junction" of the thermocouple needs to be at 0°C, which isn't likely to be the case - but they are sufficient to check for a varying output if you should test the element by powering it up before installing the controller (providing that it heats up!).

If there's no voltage output then it's either faulty too (unlikely?), it's not a thermocouple or else there's an issue with the test method/apparatus...

[decca591]

Just a quickie, and one I should have asked earlier, in the centre of the old controller is a small resistor, neatly slotted into the middle between the connectors, this is not replicated on the new controller, but - in the box where I have all the bits for this project there is a round blue resistor that also goes with the new one, possible replacing the one on the old one ??

Its there for a reason, my big brother has suggested this possibly goes across 1 & 2 - it has 3KV printed on it, any thoughts ?

Decca

[willd]

Just a quickie, and one I should have asked earlier, in the centre of the old controller is a small resistor, neatly slotted into the middle between the connectors, this is not replicated on the new controller, but - in the box where I have all the bits for this project there is a round blue resistor that also goes with the new one, possible replacing the one on the old one ??

Its there for a reason, my big brother has suggested this possibly goes across 1 & 2 - it has 3KV printed on it, any thoughts ?

Decca

I'm not certain about that, and information is scarce, but it's possible to use these controllers with a standard 4 - 20mA signal, and it seems it's likely that that's the reason the resistor is included, as one is needed as part of that configuration.

If that's the case you don't need it.

I suspect the the component seen on the back of the old controller is a thermistor, which allows the controller to compensate for the temperature difference between the "cold junction" and 0°C.

If thats the case, then the component on the new controller is maybe internal.

[willd]

Just a quickie, and one I should have asked earlier, in the centre of the old controller is a small resistor, neatly slotted into the middle between the connectors, this is not replicated on the new controller, but - in the box where I have all the bits for this project there is a round blue resistor that also goes with the new one, possible replacing the one on the old one ??

Its there for a reason, my big brother has suggested this possibly goes across 1 & 2 - it has 3KV printed on it, any thoughts ?

Decca

I deleted my previous post as I'd found further information - your blue component is in fact a thermistor, and should go between terminals 2 & 3, to allow for the "cold junction" temperature correction to be applied by the controller.

[decca591]

Ok So this is where we are:

The controller at least appears to be working, the Thermistor is where it should be and not in the box , I turned the heat press on, controller lights up and registers current temp - cold

Platen not heating up so ran 240 thru it direct (all other cables etc disconnected) result was that the heater immediately kicked in and the platen heated up

re-cabled as per instructions - including our little blue friend, the thermistor, turned on, all works ok as far as the controller operating and registering new temp, following direct 240 test, so no problems there.

only thing not kicking in is the transformer, no light on this, as I mentioned earlier in a post I had already ordered a replacement, if there truly is a god then that should arrive on the morrow and I can then try it !

Once again thanks for all your input, we are getting somewhere, I have learned a lot from you guys, and hopefully someone else might benefit from these posts !!

Any other ideas as to what could be preventing the transformer from working or could cause it to malfunction, perhaps the old controller caused a problem or vice versa, looks at moment like both components transformer and controller were iffy ?
feel free to chip in, but for now - I will await the arrival of the new one to try

Regards All

Decca.

[wayupnorth]

Where does the transformer sit in this setup ?

[decca591]

Controller, Transformer, Platen !
